The Outbox Pattern — A Must-Have for Reliable Event-Driven Systems

Imagine this:

• Your .NET microservice processes an order and needs to:
  1️⃣ Update the database
  2️⃣ Publish an event to a message broker to notify other services.

Seems easy, right? But what if your service crashes after writing to the database but before publishing the event?
✅ The order is saved, but the event never goes out.
❌ Other services never learn about the new order.

That’s where the Outbox Pattern saves the day.

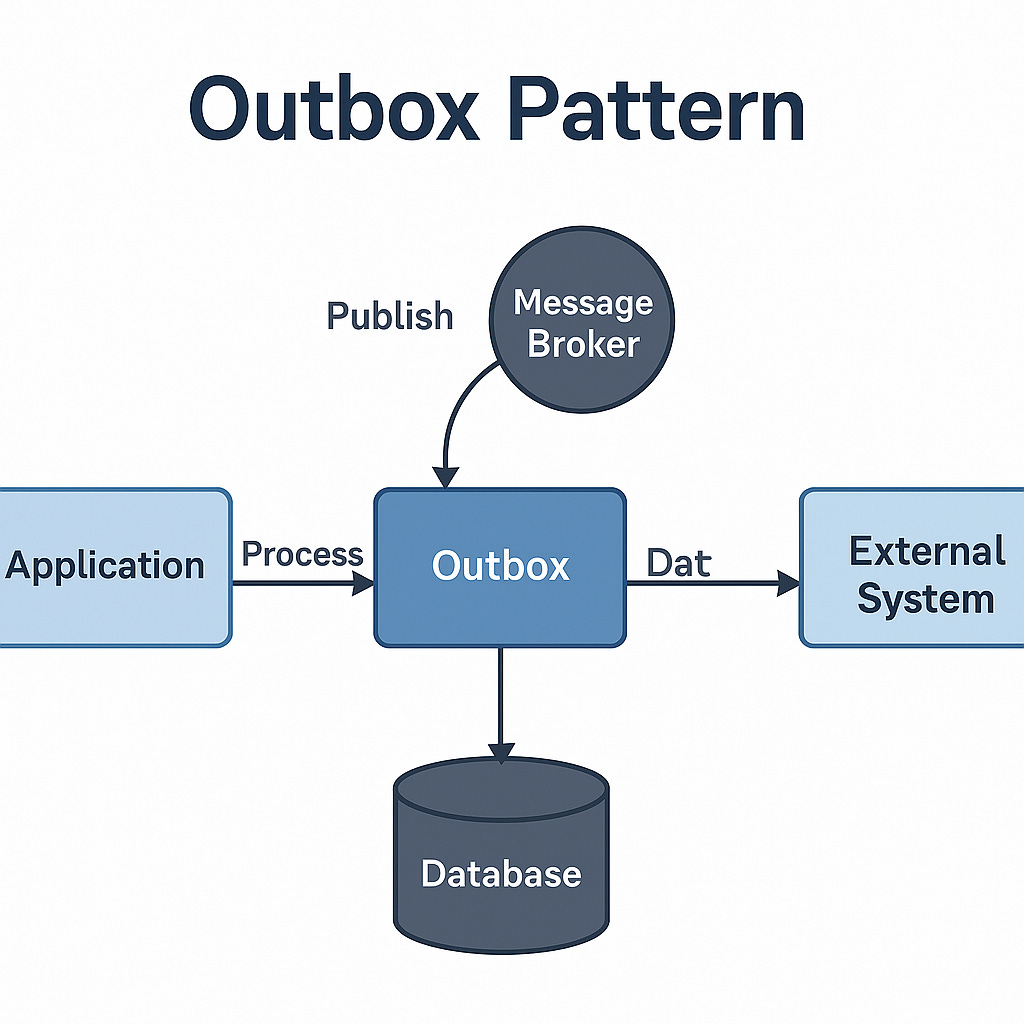

What is the Outbox Pattern?

The Outbox Pattern ensures atomic persistence of both the business data and the event that needs to be published — using a single database transaction.

How it works:
1️⃣ Save your business data (e.g., order) and the outbound message/event together in the same database transaction.
2️⃣ A background process (Outbox Processor) later reads the outbox table and publishes the event to the message broker.
3️⃣ Once published, mark the outbox entry as dispatched.

This ensures reliability — even if the service crashes between steps, the message is not lost.

Step-by-Step Implementation in .NET

1️⃣ Create the Outbox Table

https://medium.com/@dotnetfullstackdev

CREATE TABLE OutboxMessages
(
    Id UNIQUEIDENTIFIER PRIMARY KEY,
    OccurredOn DATETIME,
    Type VARCHAR(255),
    Payload NVARCHAR(MAX),
    Processed BIT DEFAULT 0
);

2️⃣ Save Data and Outbox in the Same Transaction

Example in .NET:

public async Task PlaceOrderAsync(Order order)
{
    using var transaction = await _dbContext.Database.BeginTransactionAsync();

    _dbContext.Orders.Add(order);

    var outboxMessage = new OutboxMessage
    {
        Id = Guid.NewGuid(),
        OccurredOn = DateTime.UtcNow,
        Type = nameof(OrderPlacedEvent),
        Payload = JsonSerializer.Serialize(new OrderPlacedEvent(order.Id, order.Total))
    };

    _dbContext.OutboxMessages.Add(outboxMessage);

    await _dbContext.SaveChangesAsync();
    await transaction.CommitAsync();
}

✅ Both order data and the outbox message are saved atomically.

3️⃣ Process the Outbox

A background worker reads the Outbox table periodically and publishes messages:

public async Task ProcessOutboxAsync()
{
    var messages = await _dbContext.OutboxMessages
                                   .Where(m => !m.Processed)
                                   .ToListAsync();

    foreach (var message in messages)
    {
        var eventData = JsonSerializer.Deserialize<OrderPlacedEvent>(message.Payload);

        // Publish to message broker (RabbitMQ, Kafka, Azure Service Bus)
        await _messagePublisher.PublishAsync(eventData);

        message.Processed = true;
    }

    await _dbContext.SaveChangesAsync();
}

Why Use the Outbox Pattern?

✅ Reliability — Messages won’t get lost if the app crashes.
✅ Atomicity — Data and messages are saved together.
✅ Eventual Consistency — Other services eventually get the message, even if the publisher restarts.
✅ Resilience — Retry logic can be built into the Outbox Processor.

Caveats

⚠️ Duplicate Messages — The Outbox might process the same message more than once. Ensure idempotency in consumers.
⚠️ Latency — Since the background process runs periodically, there might be a slight delay in event publication.

Best Practices

✅ Store event type and payload in Outbox — makes it easier to deserialize.
✅ Use separate database tables for high-throughput systems.
✅ Use background workers or hosted services in .NET Core for processing.
✅ Implement retry and error handling — don’t let a single failure block the pipeline.
✅ Use deduplication or idempotent consumers to handle duplicates.

Conclusion

The Outbox Pattern is an essential tool in your .NET toolbox for building reliable, distributed systems. It bridges the gap between transactional consistency and asynchronous event-driven architecture, ensuring your systems remain resilient even in the face of failures.
