Inside SQL Server: What Actually Happens When You Execute a SQL Query

For content overview videos
https://www.youtube.com/@DotNetFullstackDev

Every developer has written this line thousands of times:

SELECT * FROM Orders WHERE OrderId = 101;

You press Execute.
A result appears.
And that’s it… right?

Not really.

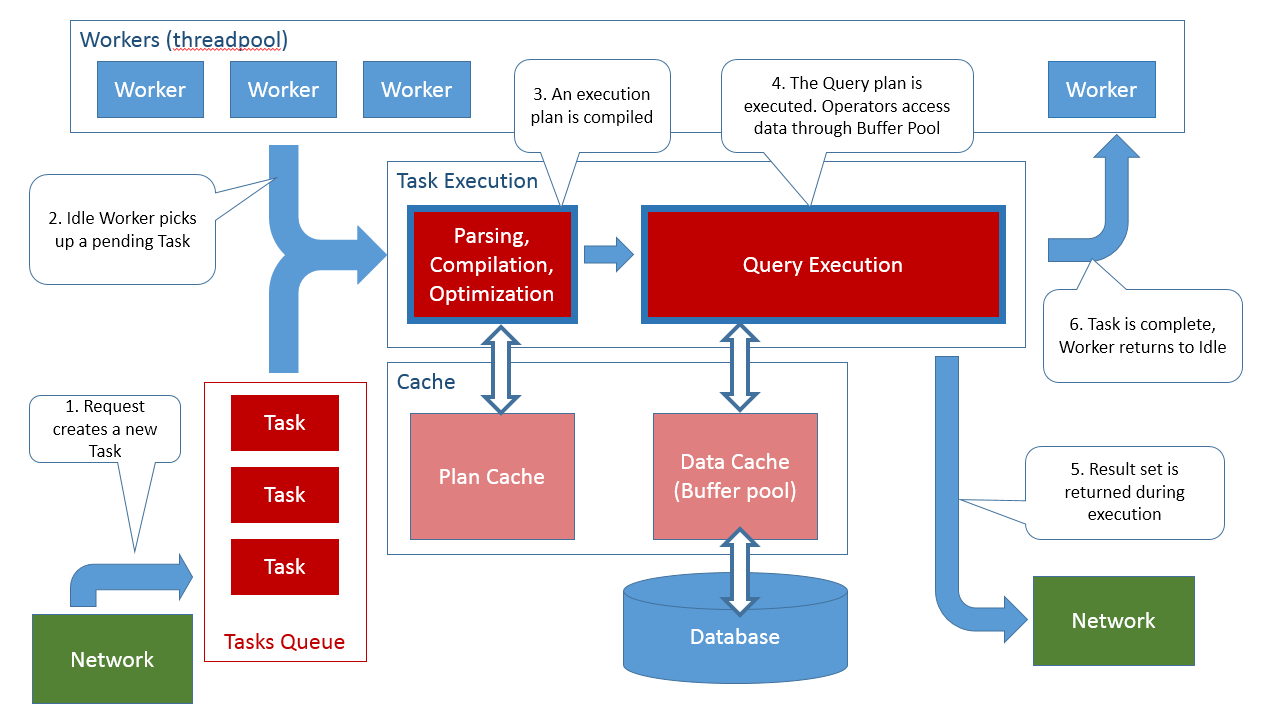

Behind that single query, SQL Server runs an entire internal pipeline involving:

• parsing

• optimization

• compilation

• memory management

• locking

• execution engines

• storage engines

• buffer pools

• transaction logs

This article takes you inside SQL Server, step by step, to understand what really happens from the moment you hit Execute until rows are returned.

The Journey Begins: Client Sends the Query

When you execute a query from:

• SQL Server Management Studio (SSMS)

• an application (C#, Java, Python)

• a reporting tool

The query does not directly hit the database files.

First, it travels over the network using the TDS protocol (Tabular Data Stream).

What SQL Server receives

SQL Server receives:

• the SQL text

• session information

• login context

• transaction settings

• language and date formats

At this point, SQL Server has only text, not an execution plan.

Parsing: “Is This SQL Even Valid?”

The first internal component that touches your query is the Parser.

What parsing means

Parsing answers basic questions:

• Is the SQL syntax correct?

• Are keywords valid?

• Are parentheses balanced?

• Is the query structure meaningful?

If you write:

SELEC * FROM Orders

Parsing fails immediately.

Important clarification

Parsing does not:

• check if tables exist

• check indexes

• check performance

It only validates grammar.

If parsing succeeds, SQL Server moves to the next stage.

Binding (Algebrizer): “What Does This Query Refer To?”

Now SQL Server needs to understand what your query is talking about.

This step is often called:

• Binding

• or Algebrization

What happens here

SQL Server:

• Resolves table names

• Resolves column names

• Checks schemas

• Validates data types

• Verifies permissions

• Expands * into actual columns

For example:

SELECT * FROM Orders

Becomes:

SELECT OrderId, OrderDate, CustomerId, TotalAmount FROM dbo.Orders

Now SQL Server knows exactly what objects are involved.

If a table or column doesn’t exist, this is where the error is thrown.

Query Optimization: “What Is the Fastest Way to Get the Data?”

This is the most intelligent and expensive part of query processing.

SQL Server now hands the query to the Query Optimizer.

What the optimizer does

The optimizer asks:

“There are many ways to execute this query.
Which one is the cheapest?”

Here, cheap means:

• less CPU

• fewer reads

• less memory

• faster execution

How SQL Server thinks (important mental model)

SQL Server does not run your query and then see how fast it is.

Instead, it:

1. Imagines many execution plans

2. Estimates the cost of each plan

3. Chooses the lowest-cost plan

This is based on:

• table statistics

• index statistics

• data distribution

• available indexes

• estimated row counts

Example

For this query:

SELECT * FROM Orders WHERE OrderId = 101;

Possible plans include:

• Full table scan

• Clustered index seek

• Non-clustered index seek + key lookup

The optimizer evaluates all options and picks one.

Plan Cache: “Have I Seen This Query Before?”

Before generating a new plan, SQL Server checks the Plan Cache.

Why this matters

Generating an execution plan is expensive.

So SQL Server asks:

“Do I already have a plan for this exact query?”

If yes:

• It reuses the existing plan

• Saves time and CPU

If no:

• A new plan is compiled

• Stored in the plan cache for future use

This is why parameterization and query consistency matter so much for performance.

Compilation: Turning Plan into Executable Instructions

Once the optimizer selects the best plan, SQL Server compiles it.

Compilation produces:

• an execution plan

• physical operators (Index Seek, Scan, Hash Join, Nested Loop)

• memory grant estimates

• execution order

At this point:

• SQL text → logical plan → physical plan

• SQL Server knows exactly how it will fetch the data

Still, no data has been read yet.

Execution Begins: The Execution Engine Takes Over

Now the query moves from the Relational Engine to the Storage Engine.

Important distinction

• Relational Engine: decides what to do

• Storage Engine: actually fetches data from disk/memory

Execution now starts operator by operator.

Buffer Pool: “Do I Already Have This Data in Memory?”

Before touching disk, SQL Server checks the Buffer Pool.

Buffer Pool explained simply

The buffer pool is SQL Server’s in-memory cache of data pages.

When SQL Server needs a data page:

1. Check buffer pool

2. If found → memory read (very fast)

3. If not found → disk read (slow)

This is why:

• memory is critical for SQL Server

• repeated queries get faster

• cold cache vs warm cache matters

Storage Engine: Reading Data Pages

If data is not in memory:

• SQL Server reads 8KB pages from disk

• Pages are loaded into the buffer pool

• Data is returned to the execution engine

SQL Server never reads individual rows.
It always works in pages.

Locks & Transactions: Keeping Data Safe

While reading or modifying data, SQL Server must ensure consistency.

What SQL Server does

• Acquires locks (shared, exclusive, intent)

• Honors transaction isolation level

• Prevents dirty reads or conflicts (based on settings)

Even a simple SELECT may acquire locks depending on:

• isolation level

• indexes used

• execution plan

Row Processing & Operator Execution

Now SQL Server executes the plan step by step.

For example:

• Index Seek → retrieves matching rows

• Filter → applies WHERE clause

• Join → combines rows from multiple tables

• Sort → orders results

• Aggregate → computes SUM, COUNT, etc.

Each operator:

• pulls rows from the previous operator

• processes them

• passes results upward

This happens row by row, not all at once.

Returning Results to the Client

As rows are produced:

• SQL Server streams them back to the client

• It does not wait for the entire result set

That’s why:

• you may start seeing rows early

• large queries return results gradually

The client displays the data as it arrives.

Cleanup: Memory, Locks, and Execution Context

Once execution finishes:

• locks are released

• memory grants are freed

• execution context is cleaned

• plan remains in cache (if eligible)

The query lifecycle is complete.

Keep the Momentum Going — Support the Journey

If this post helped you level up or added value to your day, feel free to fuel the next one — Buy Me a Coffee powers deeper breakdowns, real-world examples, and crisp technical storytelling.

Final Mental Model (Very Important)

When you execute a SQL query, SQL Server does far more than “run it”.

It:

1. Parses the SQL

2. Understands objects and permissions

3. Optimizes execution strategy

4. Reuses or compiles plans

5. Checks memory before disk

6. Reads data pages

7. Manages locks and transactions

8. Executes operators

9. Streams results back

Once you understand this internal pipeline:

• execution plans make sense

• indexing decisions become logical

• performance tuning becomes systematic

• SQL Server feels predictable, not magical
